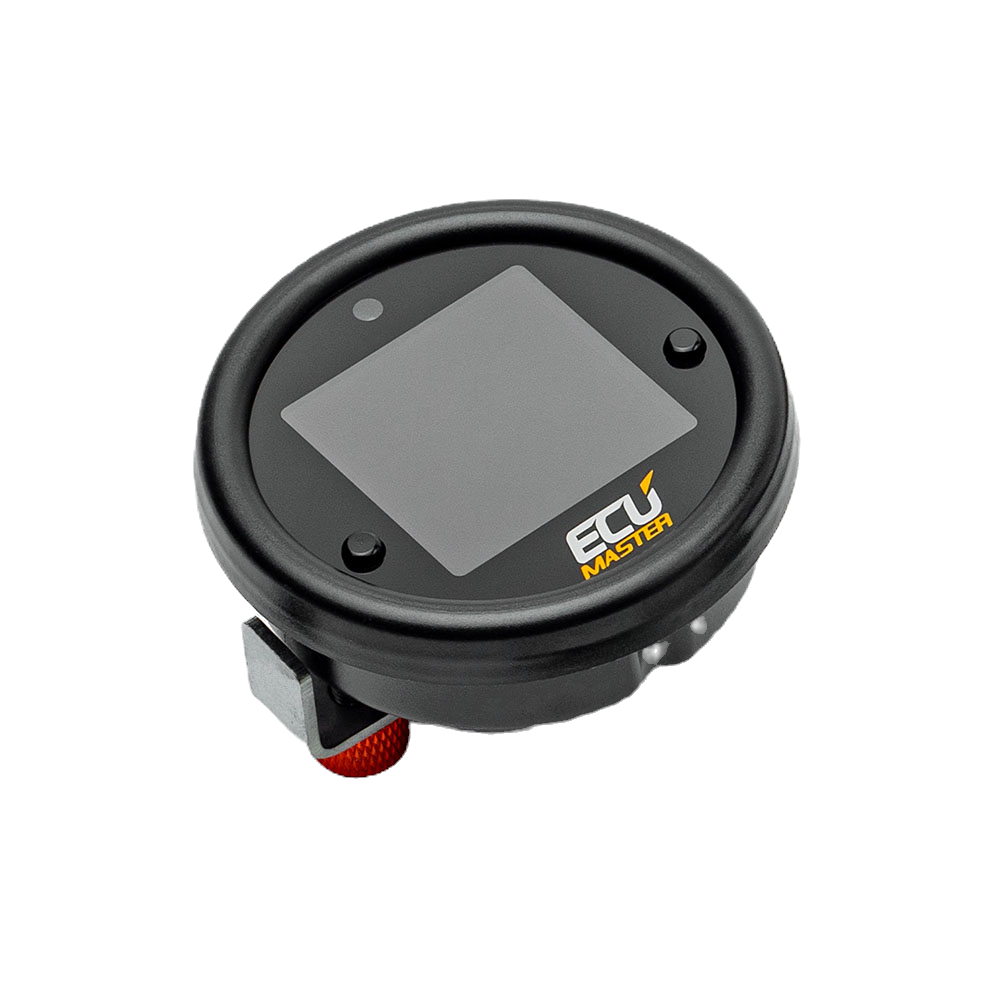

MFD15
52mm Can-Bus multi display. Device in cooperation with Ecumaster and Can_Checked.

KEY FEATURES
Wireless internet access – Connect to your smartphone for setup, customization

Can-Bus – Access to our complete Can Bus database (TRI Files)

Compact – 52mm installation diameter and only 12.5mm installation depth actually fits everywhere

Additional entrances – Connect additional sensors to the 6 analog inputs

Preset alarms – Ready-made warnings can be easily activated and also customized. For example, get a big warning if the exhaust gas temperature is over 900 degrees.

Online logging – ( Additional license required)Log your data with your smartphone and save the log for later analysis

Different views:
-6-fold
-4-fold
-double value
-double bar
-circular display
-single pointer
-Double value plus bar
-More gauges… Performance Meter, Gear Gauge

Online DSS – oDSS – A completely new feature of our MFD15 Gen2 is access to the device via WLAN. So you no longer need a laptop/PC for the settings on your display.
Here you can set up your display completely, log values ​​(license required), upload your own start image and also update the display.

Supported values – Many customers always ask: “Which values ​​can I request from my control unit”. The answer: ” ALL “. Our MFD15 is compatible with ISO 11898-2 and SAE J2284.

The control unit manufacturers themselves determine which values ​​are sent via the CAN bus interface. Documentation is important here – possibly even in the form of a DBC file that can be imported via our DSS . You can also access our extensive list of already implemented controllers. These can be found in the download area . A total of up to 64 sensors can be queried if the manufacturer supports this.

Data available in the broadcast as well as OBD2 queries via Can Bus (11bit/29bit) are implemented. Special protocols such as UDS are also available.

Included as standard are:
– OBD2 – 11bit/29bit
– Ecumaster Classic and Black
– DTAfast
– BMW E46 Can Bus
– BMW E90 Can Bus
– Haltech v2
– Hondata
– KMS van Kronenburg
– LinkECU
– MaxxECU
– Motec M1
– Emtron
– Megasquirt 2 and 3
– Syvecs
– Trijekt
– VW/AUDI PQ34/PQ35 etc.
– Audi S1 ​​(CJX)
– Audi RS3/TT-RS (DAZA, ​​DNWA/B/C)
